Critical Guide: PoE For Construction Site Protection And Camera Wattage Limits

Power over Ethernet is now one of the most critical design choices in construction site protection. For temporary surveillance towers, perimeter intrusion detection, and remote camera systems, the PoE standard you pick largely determines whether the system survives worst‑case night, weather, and load conditions.

This guide focuses on how 802.3af, 802.3at, and 802.3bt really behave on live construction sites, how much power your cameras and illuminators can safely draw, and what “PoE max wattage” actually means once you factor in cable loss and temporary infrastructure constraints.

The Real PoE Question For Construction Site Security

For B2B security consultants and integrators, the key question is not “Will this camera power up?” but:

Will the system remain stable at 3 a.m. in winter when:

• IR and white light are at full power
• PTZs are moving and auto‑tracking
• Heaters, wipers, and demisters are active
• Multiple devices hit inrush or peak load simultaneously

If your PoE design only works on paper at room temperature with minimal illumination, it will fail on a live construction project.

Core design principle:
Base your design on guaranteed device power (PD) after cable loss, not marketing “up to” numbers at the switch.

PoE Standards That Matter On Construction Sites

IEEE 802.3af: “Camera Only” Power

• 15.4 W at the power sourcing equipment (PSE)
• 12.95 W guaranteed at the device (PD)

What 802.3af can realistically support:

• Fixed cameras with modest built‑in IR
• No heaters, wipers, or heavy analytics
• Short to moderate cable runs with decent copper

In modern construction surveillance, 802.3af is essentially a low‑power endpoint standard. Use it when the camera is genuinely basic and the site does not need strong night‑time evidentiary capture.

Consultant takeaway:
If the device spec sheet shows a typical load near 13 W, 802.3af can work. Anything higher and you should be looking at 802.3at as a baseline.

IEEE 802.3at (PoE+): “Camera Plus Modest Accessories”

• 30 W at the PSE
• 25.5 W guaranteed at the device

This is the current workhorse PoE standard for many construction sites.

Typical use cases:

• Fixed 4 MP to 8 MP cameras with stronger IR
• Multi‑sensor domes running basic to moderate onboard analytics
• Housings with light demisting or low‑draw heaters
• Short to medium cable runs with some voltage headroom

Where 802.3at starts to struggle:

• Aggressive IR or white light illumination
• Heaters that kick in at lower temperatures
• Combined loads over roughly 20 to 25 W in real conditions

If the camera plus accessories pull close to 25 W on the bench, you are operating at the edge in the field once you add cold temperatures and cable losses.

IEEE 802.3bt (PoE++ / 4PPoE): Environmental & PTZ‑Grade Power

802.3bt is a fundamental step up because it uses all four twisted pairs.

Type 3:

• Up to 60 W at the PSE
• Around 51 W class at the device

Type 4:

• Up to 90 W at the PSE
• Around 71 W class at the device

This is the standard that finally aligns with real‑world construction site surveillance:

• Outdoor PTZs with heaters, wipers, and high‑power IR
• Dedicated long‑range IR or laser illuminators
• Edge servers or NVRs on poles or trailers
• Ruggedized IP devices in extreme cold

Consultant takeaway:
802.3bt is no longer “nice to have” or “future proof.” For many temporary construction sites, it is the only realistic way to maintain uptime during worst‑case conditions.

PoE 802.3af vs 802.3at For Construction Site Security Cameras

Why “Temporary” Construction Sites Are No Longer Low Power

Modern construction surveillance is very different from the analog days:

• 4 MP and 8 MP sensors are becoming standard
• On‑camera AI analytics for intrusion detection, loitering, and PPE compliance
• Brighter IR and hybrid visible/IR illumination for evidentiary night capture
• Rugged housings with heaters, demisters, and wipers
• Long and improvised cable paths that increase voltage drop risk

In this environment, 802.3af is borderline obsolete for anything except true basic cameras.

Practical Dividing Lines Between af and at

Use these real‑world thresholds when designing construction site camera power:

1. ** ~ 13 W class devices**

   • Safe territory for 802.3af
   • Think fixed camera, modest IR, no environmental accessories

2. ** ~ 20–25 W class devices**

   • 802.3at (PoE+) becomes the responsible baseline
   • Stronger IR, some analytics, possibly mild environmental loads

3. Anything with strong illumination or cold‑weather hardware

   • Begins to pressure 802.3at
   • If heaters or long‑range IR exist, treat PoE+ as a minimum, not a guarantee

Why PoE+ Designs Fail In The Field

The most common failure pattern on temporary construction sites:

• Spec sheet: camera + IR illuminator “works on PoE+”
• Lab conditions: 22 °C, short cable, limited simultaneous features
• Field conditions:
  • 80 m cable run through low‑grade copper
  • −10 °C, heater at 100 percent duty cycle
  • IR at full output, PTZ or motorized zoom moving
• Result: brownouts, reboots, random dropouts, poor night video

A single serious IR illuminator can draw 20 to 25 W by itself. That leaves little headroom for the camera on a 25.5 W 802.3at budget once cable loss is included.

802.3at vs 802.3bt For High‑Power Construction Site Devices

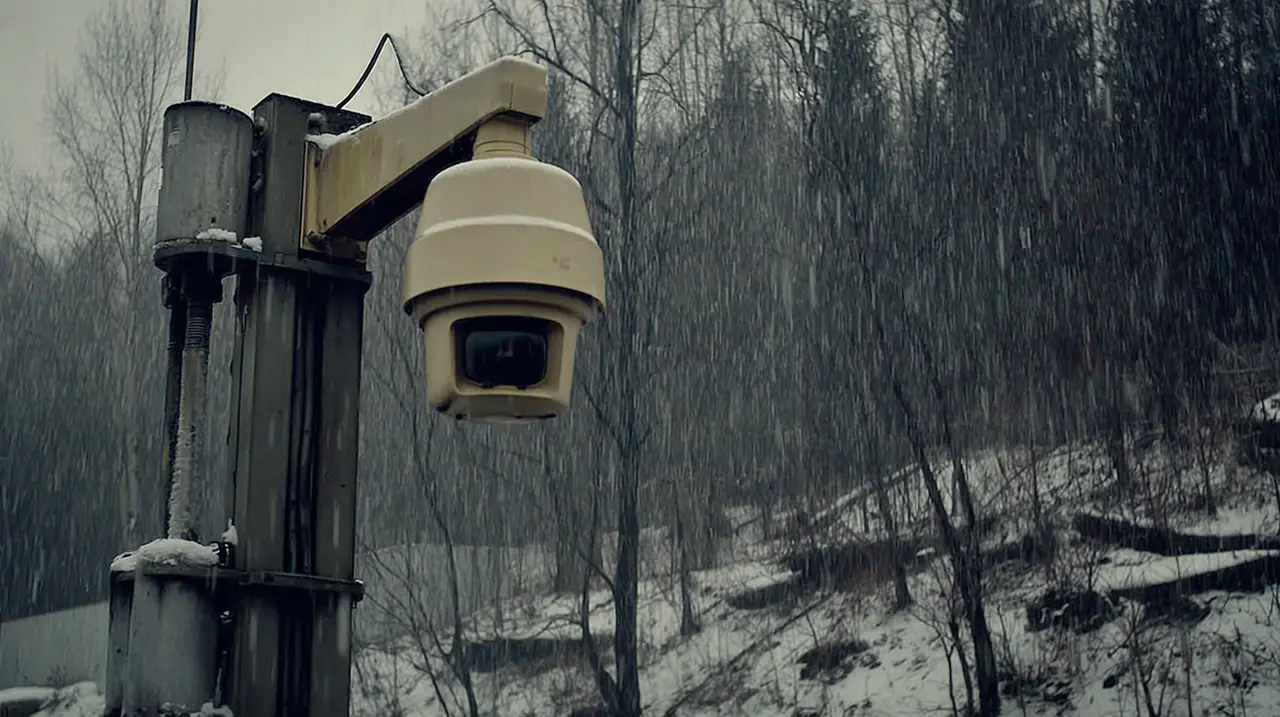

Why PTZ Cameras Change The PoE Conversation

PTZs are now common on:

• Mobile surveillance trailers and towers
• Temporary perimeter poles and corners
• Crane‑viewing and high‑angle overview locations

Once you add heaters, wipers, and high‑output IR, PoE+ is usually not enough.

Real-world PTZ power behavior (illustrative, not theoretical):

• Hikvision models: around 45–51 W when IR and heater are active on 802.3bt
• Hanwha Vision outdoor PTZs: PoE++ with heater loads in the 40 W plus range
• Pelco Esprit class: IEEE 802.3bt Class 8 with 70 W maximums in specific modes
• Avigilon PTZ platforms: Type 3 and Type 4 with maxs approaching 70 W
• LILIN rugged PTZs: published PoE++ consumption up into the 80 W range with full heater use

Consultant takeaway:
If the spec includes PTZ plus heater, you are no longer debating whether to use 802.3bt. You are simply deciding whether Type 3 is enough or if Type 4 is required for your climate and illumination goals.

Illuminators: The Silent PoE Budget Killer

Illumination is often where otherwise solid PoE designs fall apart.

• Basic onboard IR: might fit within 802.3af or 802.3at
• Dedicated perimeter IR units: typically demand PoE+ or PoE++
• Long‑range IR or laser‑based illuminators: can push into 60 W PoE++ territory

Once illumination is a design objective rather than a last‑minute add‑on, you often end up allocating 802.3bt ports specifically to lighting, even when the camera itself is relatively modest.

For construction site intrusion detection, the difference between “visible motion” and “usable evidentiary footage” is usually driven by illumination. That makes PoE design a security outcome, not just a wiring detail.

Practical PoE Wattage Tiers For Construction Site Protection

Instead of chasing brand‑specific spec sheets, think in four practical power tiers that match typical construction site devices.

Tier 1: Fixed Camera, Modest IR → 802.3af

• Small fixed bullet or dome
• Low to mid‑power IR built into the camera
• Minimal onboard analytics
• No heater, or only a very low draw in mild climates

Good for:
- Indoor temporary spaces
- Mild outdoor climates with short runs
- Low‑risk zones where “good enough” is acceptable

Tier 2: Fixed Camera With Stronger IR or Accessories → 802.3at

• 4 MP to 8 MP fixed camera with robust IR coverage
• Light analytics such as intrusion or line crossing
• Maybe a small heater or de‑icing feature

Good for:
- Most perimeter fixed cameras on trailers
- Entry gates and access points
- Standard construction environments without extreme cold

Design note:
Watch for “worst‑case” wattage when IR and heaters are both active. If that number is near or above 20 W, you are in borderline 802.3at territory and should keep cable lengths and quality tight.

Tier 3: PTZ or Hardened Devices With Heaters/Wipers → 802.3bt Type 3

• Heavy IR PTZs used for long‑range perimeter tracking
• Rugged domes with full heater/wiper assemblies
• Some edge compute appliances or on‑pole NVRs

Good for:
- Most outdoor PTZs in moderate to cold climates
- Large sites where a few PTZs replace many fixed cameras
- Perimeter intrusion detection where cameras must remain usable in bad weather

Type 3 typically gives you around 51 W at the device, which is enough for a significant heater plus IR for many mainstream PTZs.

Tier 4: Worst‑Case Cold‑Weather PTZ + Aggressive Illumination → 802.3bt Type 4

• PTZ with heater, wiper, and high‑intensity IR or laser
• Arctic or desert edge devices that draw large heater loads
• Complex multi‑sensor or panoramic cameras with separate illuminators

Good for:
- Harsh winter climates
- Large, high‑risk projects where incident footage must be perfect
- Facilities where security, safety, and regulatory drivers demand high reliability

With around 71 W at the device, Type 4 is effectively your “no excuses” tier for construction site protection in extreme conditions.

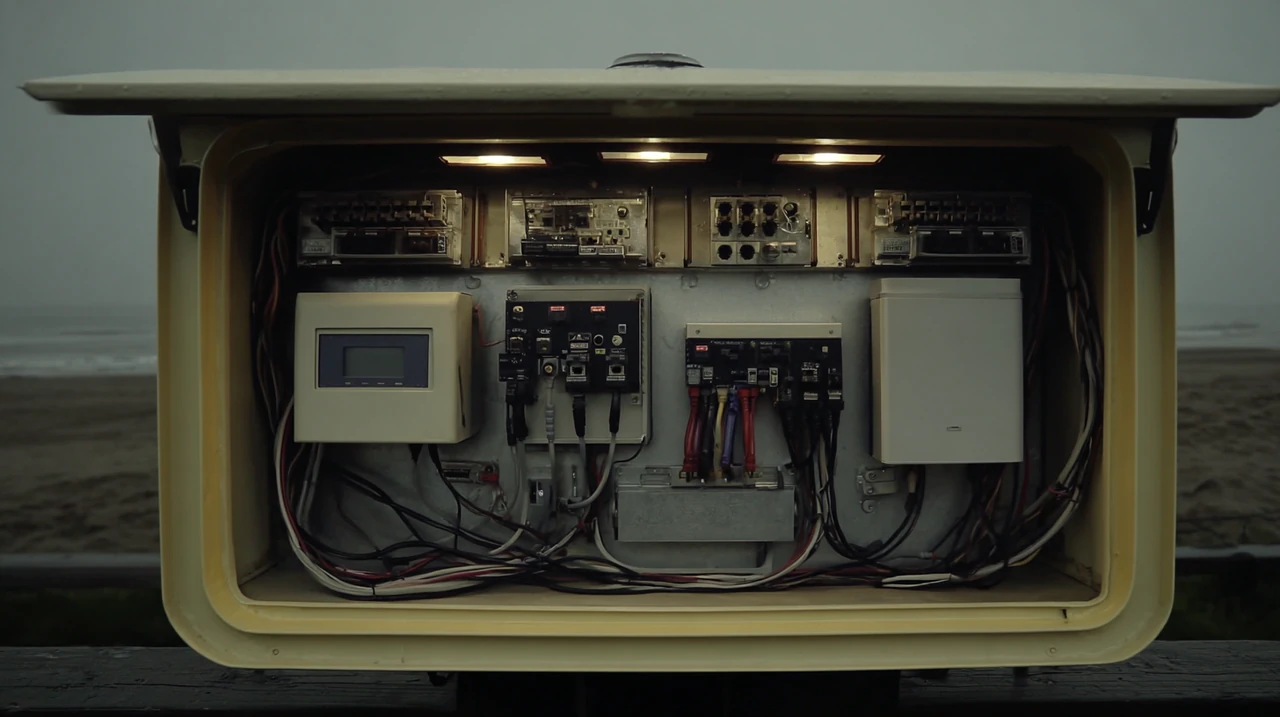

PoE Switching, Midspans, And Temporary Infrastructure Realities

Higher‑Power PoE Is Now Mainstream

You no longer need exotic gear to get 60–90 W per port. Many access switches and midspans are built with security and temporary infrastructure in mind.

Examples across the ecosystem:

• Hikvision: Hi‑PoE and 802.3bt switches tuned to PTZ and illuminator loads
• Axis: 90 W PoE++ midspans and hardened switches suited to harsh and temporary environments
• Cisco Catalyst: platforms with 60 W “UPOE” and 90 W 802.3bt Type 4 per port
• Juniper: access switches with detailed PoE budgeting tools for mixed devices

The Total PoE Budget Trap

Per‑port wattage is only half the story. The more common failure in construction site PoE design is:

• Each port can supply 60 or 90 W
• But the total PoE power budget on the switch or midspan is limited
• Multiple PTZs spin up heaters and IR at the same time
• The switch starts power policing or ports brown out

Consultant rule:
Always model “worst‑case simultaneous draw” for all high‑power devices during coldest nights. Temporary construction sites with many PTZs and illuminators are particularly prone to oversubscribing budget.

Installation And Risk Factors Unique To High‑Power PoE On Sites

As PoE wattage goes up, so does the sensitivity to installation quality.

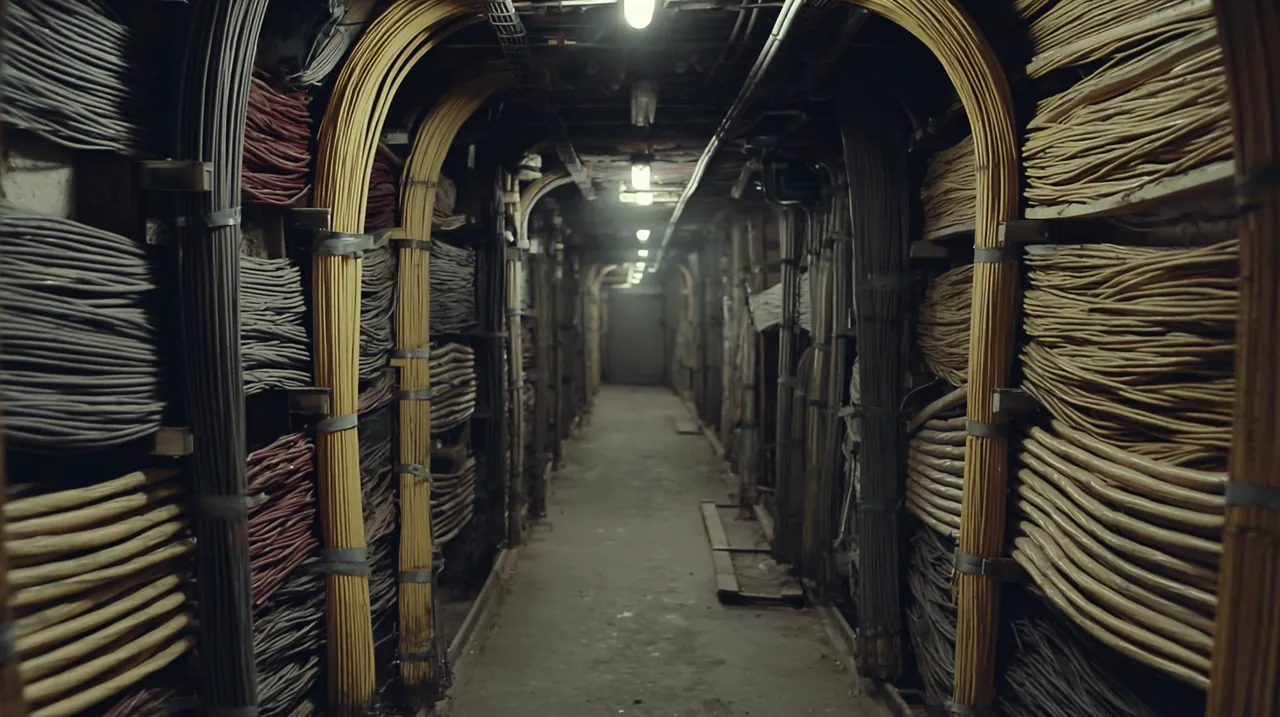

Cable Bundling And Thermal Rise

• Large cable bundles trap heat, which elevates conductor temperature
• Higher temperatures increase resistance and loss
• More loss reduces the usable wattage at the device

Best practice:

• Keep bundles relatively small, around 24 cables where possible
• Use higher‑grade cable for high‑power runs
• Avoid over‑tight temporary trays and compressed runs that trap heat

Terminations And Improvised Routing

Temporary construction sites often feature:

• Quick‑crimp terminations under time pressure
• Cables draped over metal structures or sharp edges
• Long detours to avoid active work areas

All of this amplifies:

• Voltage drop
• Intermittent contact
• Mechanical stress on connectors

For 802.3bt projects, terminations and routing discipline directly affect security reliability. A slightly loose crimp that was tolerable at 802.3af can become a chronic failure point at 802.3bt power levels.

Current Issues And Trends (2024–2026) In PoE For Construction Site Protection

The Shift From “More Watts” To Design Confidence

The key industry trend is not just the availability of 90 W PoE ports. It is that manufacturers are now designing hardware with 802.3bt as the assumed baseline:

• Cameras, PTZs, and illuminators expect more headroom and will use it
• Wireless access points, IoT sensors, and safety systems share the same PoE plant
• On‑edge analytics and AI workloads continue to climb

For construction site security, that means:

• 802.3bt is the default if you want reliable night‑time intrusion detection
• 802.3at is a transitional baseline for medium‑power fixed devices
• 802.3af is best reserved for truly low‑power endpoints or niche cases

Impact For Security Consultants And Integrators

Design implications:

• You cannot assume “PoE+ is enough” for outdoor cameras any more
• You should classify devices into the four power tiers before selecting switches
• You must factor in environmental extremes and peak load conditions from day one

Operational implications:

• Fewer truck rolls if systems remain stable under stress
• Better evidentiary video for incident review and claims
• Lower risk of system failure during critical safety or security events

In short, PoE planning has moved from a line item in the BOM to a central part of risk management on construction sites.

How To Choose The Best PoE Solution For Temporary Construction Site Surveillance

If you are advising a client or designing a system, use this decision path.

Step 1: Define The Security Outcome, Not Just The Camera

Ask:

• Do we need reliable night‑time identification or just detection?
• Are we covering high‑value assets or general monitoring?
• What is the lowest temperature and harshest weather we must survive?
• Is the site using PTZs, fixed cameras, or a mix?

The more demanding the outcome, the more you move toward 802.3bt.

Step 2: Map Each Endpoint To A PoE Tier

For every device:

1. Identify peak power draw with all features active
2. Place it in Tier 1, 2, 3, or 4
3. Verify cable distance and quality against that tier

If more than a few devices land in Tier 3 or 4, you are now in a PoE++‑centric architecture, not a PoE+ one.

Step 3: Select Switching Or Midspans Based On Total Budget

• Count worst‑case watts across all devices on each switch
• Select switches or midspans that meet or exceed this total with margin
• Prefer platforms with clear PoE budgeting tools and logs

For temporary and mobile deployments, PoE midspans can also:

• Isolate security power from general IT
• Allow upgrades to 802.3bt without changing the core switch
• Simplify deployment on rental or shared networks

Step 4: Engineer For The Worst Night, Not The Typical Day

Validate that:

• Cable runs, terminations, and bundles are within high‑power guidelines
• Heaters, IR, and analytics can all run simultaneously without tripping budgets
• There is margin for future additions, like extra illuminators or sensors

If your PoE design works at 4 a.m. in a blizzard or dust storm, it will work the rest of the time.

Final Consultant Perspective

For construction site protection, PoE has evolved from a checkbox into a strategic design variable.

• 802.3af: use only for truly low‑power, basic cameras or indoor devices
• 802.3at: suitable as a baseline for fixed cameras with moderate IR and analytics
• 802.3bt Type 3 and 4: the realistic choice for PTZs, harsh weather housings, and serious illumination

The critical question you should be asking on every project is:

“Which PoE standard survives worst‑case night, weather, and load conditions on this temporary site?”

In 2026, the answer for most serious construction surveillance and intrusion detection deployments is 802.3bt, backed by disciplined power budgeting and installation practices.
